Concrete Density in Construction Work: Meaning, Calculation, and Importance

What do we mean by Concrete Density?

Concrete density is the weight of a specific volume of concrete. In simple terms, it tells us how much a given amount of concrete weighs within a fixed space. This may seem like a basic measurement, but it has an important role in construction because it affects how the material behaves under load.

Density is commonly expressed in kg/m³ or kN/m³. These units make it easier to compare different kinds of concrete and judge where each type can be used. In day-to-day site and design practice, this value gives a practical indication of cement quality and helps support better construction decisions.

How to calculate the density of concrete?

The calculation of concrete density is simple in principle. It is based on the following formula:

Density = Mass / Volume

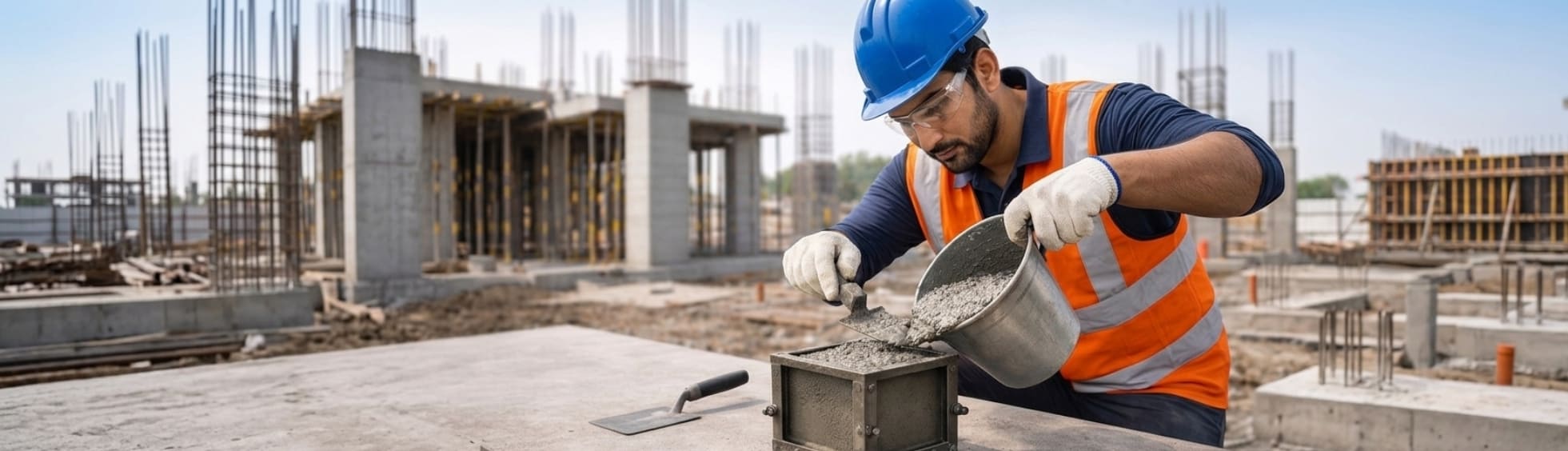

To calculate density, the first step is to measure the mass of a representative sample of concrete. This is done by weighing the sample. The next step is to determine the volume occupied by that sample. In practice, this is usually measured while the concrete is in a mould before it sets.

Once both values are known, the mass is divided by the volume. The result gives the density of the concrete sample.

Factors to keep in mind when calculating the density of concrete

For the result of the concrete density calculation to be precise, the sample must properly represent the mix used in the actual work. It should also be free from air pockets or voids. If the sample is not representative or contains too many voids, the measured density may not reflect the actual quality of the concrete being placed on site.

This is why site professionals use care while collecting, moulding, and measuring the sample. Accurate density measurement supports a better understanding of whether the concrete is suitable for the intended construction work and whether it is likely to deliver the expected performance.

Common Ranges of Concrete Density

The density of concrete varies depending on the ingredients used in the mix, especially the type of aggregate. Understanding the common ranges helps professionals select the right kind of concrete for the right application.

1. Normal weight concrete

This is the most commonly used type in general construction. It usually has a density range of 2,200 to 2,500 kg/m³ or 22 to 25 kN/m³. It is made with standard aggregates such as sand, gravel, and crushed stone. This type of concrete offers a practical balance of workability and strength and is widely used in everyday structural and non-structural applications.

2. Lightweight concrete

Lightweight concrete is used where reducing structural weight is important. It generally has a density range of 1,400 to 1,850 kg/m³ or 14 to 18 kN/m³. This lower density is achieved by using lightweight aggregates such as expanded clay, pumice, or perlite.

This type of concrete is useful where reducing the load on structural members or foundations is a priority.

3. High-density concrete

High-density concrete is used for special purposes. Its density typically ranges from 3,000 to 4,000 kg/m³ or 30 to 40 kN/m³. It is made using heavy natural aggregates such as barites or magnetite, or manufactured materials such as steel or iron pellets. This type of concrete is used where additional weight or radiation shielding is required, such as in hospitals, nuclear facilities, or marine structures that need greater stability.

If you have the density range in kg/m³ and you want to convert to kN/m³, then this is the standard formula to use for the calculation:

kN/m³ = kg/m³ × 9.811000

The Importance of Concrete Density

Concrete density is important because it supports safe and informed construction decisions. It is not just a technical value used in testing. It has practical significance at the design stage, during material selection, and through project execution.

1. Structural design

Density directly affects structural design.Density directly affects structural design. Engineers use it to estimate how much weight a concrete element can carry and how much load it contributes to the overall structure, including beams, columns, and slab construction. This makes it an important input in the planning of buildings, bridges, and other infrastructure.

Where more stability or higher load-bearing capacity is needed, denser concrete may be preferred. In structural systems such as a Reinforced Cement Concrete or RCC structure, and even in base layers made with Plain Cement Concrete density becomes part of the broader decision-making process that supports safe design.

2. Weight considerations

In some projects, the weight of concrete itself becomes a major consideration. Where reducing overall structural load is necessary, lighter concrete may be selected. In other cases, more weight may be useful because it adds stability.

This is why density matters not only in structural calculations but also in practical construction planning. The right density helps ensure that the concrete matches the demands of the project rather than working against them.

3. Material selection

Different projects require different types of concrete. Density helps professionals choose the material that best suits the purpose. A mix selected for general building use may not be right for a project requiring reduced dead load. Similarly, a specialised facility may require much heavier concrete than standard construction.

Density therefore acts as a guide in material selection. It helps ensure that the concrete being used is appropriate for the project requirement and the expected service conditions.

4. Durability and performance

Density also has a close relationship with durability and performance. In general, denser concrete has fewer air pockets. This can improve resistance to water penetration, freeze-thaw exposure, and chemical attack. These qualities matter in structures that are exposed to demanding environmental conditions or expected to perform for many years with limited maintenance.

This is one reason density is viewed as more than a physical measurement. It also serves as a practical indication of how well the concrete may hold up in service.

5. Quality control

In concrete production and placement, density supports quality control. Regular checks help determine whether the concrete mix is meeting project requirements. If the measured density falls outside the expected range, it may indicate issues with the mix, compaction, or consistency or the water cement ratio.

By checking density during construction work, problems can be identified early. This reduces the chance of later defects, poor performance, or repair costs.

The importance of concrete density becomes clearer when it is viewed in actual construction use. It supports design decisions, material selection, durability expectations, and site quality checks. It also gives professionals a simple but useful way to judge whether a concrete mix is likely to perform as required.
