A Complete Guide To Workability of Concrete in Construction

Concrete is the most important material in construction and its versatility lies in its ability to be moulded, placed, and hardened into durable forms. Yet, the success of any concrete mix is not determined by strength alone.

A very important property, referred to as the workability of concrete, determines whether the concrete mix can be reliably handled, placed, and compacted. Improperly designed workability can lead to voids, cracks, or segregation and lead to performance issues in an otherwise strong design.

What is meant by Workability of Concrete?

Workability of concrete refers to the ease with which freshly mixed concrete can be mixed, transported, placed, and finished without segregation or loss of uniformity. It is essentially about achieving a mix that can be handled smoothly during construction while maintaining strength and durability.

While there are a number of elements that influence the concrete’s workability the water-cement ratio is the most important of them all because too much water leads to a weak, porous mix, while too little makes the mix stiff and unmanageable. Aggregate properties, mix proportion, and admixtures also contribute to it therefore achieving the right balance ensures concrete is strong, durable, and suitable for its intended application.

Types of Workability of Concrete

The workability of concrete is generally segregated into three broad categories:

1. Low Workability

Also called harsh concrete, this type has very low workability. It results from a low water-cement ratio or poor mix design. The mix is stiff and difficult to handle. While placement is challenging, unworkable concrete is sometimes preferred for massive structures such as dams, gravity walls, or thick foundation blocks where compaction with heavy equipment is feasible. It is also suitable for machine compacted concrete like pavements. The Slump Range is 0 – 25 mm.

2. Medium Workability

This is the most commonly used type in building projects. Medium workability is considered as a well balanced type because it is neither too stiff nor overly fluid. It is easy to place, compact, and finish, making it suitable for beams, slabs, columns, and foundations. Concrete in this category is compacted with moderate effort and produces strong, durable structures with fewer voids. The Slump Range is 50 mm – 100 mm.

3. Highly Workable Concrete

Highly workable concrete is flows easily and minimal effort required in placement and compaction. Generally used in mass concreting & congested reinfrocement areas.

The Slump Range is 100 – 150 mm.

4. Very High Workability

This type of concrete is very fluid and self levelling concrete. It can flow into intricate formwork or reinforcement without much effort. Its main advantage is its self-placement and compaction capability usually by its own weight. However, careful control is much needed so as to avoid segregation, where coarse aggregates separate from the mortar. Examples include flowing concrete, self-consolidating concrete (SCC), and shotcrete. This type is particularly useful for heavily reinforced or architecturally complex structures.

The Slump Range is 150 mm & above and is measured by Flow Table test or Vee-Bee Consistometer

Factors That Affect Workability of .Concrete

Workability is influenced by multiple interrelated factors. Key ones include:

1. Water-Cement Ratio

This is the most important factor. Higher water content increases fluidity and makes the concrete easier to handle. However, an excessive water-cement ratio reduces strength and durability. A low ratio enhances strength but reduces workability. The balance depends on the project requirements.

2. Aggregate Size and Shape

Aggregates form the bulk of a concrete mix. Large, angular, or rough-textured aggregates reduce workability because they create more internal friction. Rounded and smooth aggregates increase flowability and make handling easier.

3. Use of Admixtures

Admixtures such as plasticizers, water-reducers, and superplasticizers impact the behaviour of the mix. They improve flow without increasing water content, allowing for better compaction and durability at the same time.

4. Concrete Mixing Method

The efficiency of concrete mixing directly affects uniformity and workability. Over-mixing may cause segregation, while under-mixing produces inconsistent blends. Using proper mixing duration and equipment results in better consistency.

5. Mix Proportioning

The relative proportion of cement, water, and aggregates determines the overall behaviour of the mix. A well-balanced mix proportion improves both workability and strength.

6. Temperature and Weather

High temperatures accelerate setting, reducing workable time. Cold weather slows down hydration, making the mix sluggish. Weather conditions must be considered when deciding on admixtures and procedures of placement.

7. Thickness of the Concrete Section

Thicker sections may allow lower workability mixes since compaction equipment can be applied effectively. Thin or intricate sections require higher workability to ensure complete filling without voids.

Applications as per Degree of Workability

The required workability of concrete depends on where and how it will be used:

• Very Low : In the “very low” category of workability, where strict quality control is necessary like oavement quality concrete, measurement of workability by determination of compacting factor will be more appropriate than slump cone and a value of compacting factor of 0.75 to 0.80 is suggested.

• Low : Suitable for mass concrete, lightly reinforced section in slabs, beams, columns, walls, floors, hand placed pavements, canal lining, strip footings etc with slump value of 25 mm – 75 mm.

• Medium Workability : Suitable for heavily reinforced section in slabs, beams, walls, columns etc with slump range between 50 – 100 mm & 75 – 100 mm as per section.

• High Workability : Suitable for trench fill, complex formwork, congested reinforcement etc, with slump range of 100 – 150 mm.

• Very High Workability : Suitable for In-situ piling and tremie concrete with very high category of workability. The measurement of workability by determination of flow will be appropriate.

Proper selection of workability ensures safety, longevity, and cost efficiency, while reducing the risks of segregation and poor compaction.

Types of Tests to Determine Workability of Concrete

Workability is not left to judgment alone. Several standardized tests help quantify it for reliable application.

1. Slump Cone Test

The slump cone test is the most widely used field method. Fresh concrete is placed in a cone-shaped mould in three layers, each compacted with 25 blows from a 16 mm dia and 600 mm long rod. After filling, the cone is lifted, and the reduction in height (slump) is measured and noted in milimeters.

• Zero slump: Very stiff mix, used in road construction.

• Low slump (25–75 mm): Stiff mix, suitable for footings and foundations.

• Medium slump (50–100 mm): Good workability for general building work.

• High slump (100 - 150 mm): Flowing mix, used in complex reinforcement but prone to segregation if not controlled.

In addition, the test is valid only if it yields a true slump, this being a slump in which the concrete remains substantially intact and symmetrical. In case, the specimen shears or collapses, take another sample and repeat the entire procedure.

The test is simple, quick, and effective for on-site adjustments.

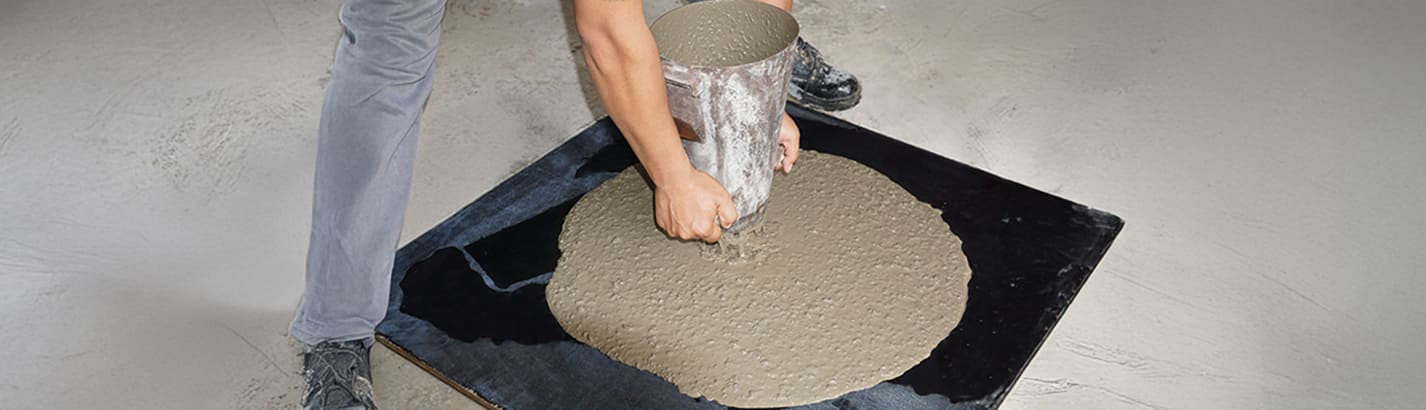

2. Flow Table Test

This test measures how far a concrete sample spreads on a flat table when lifted and jolted. It is especially useful for highly workable or fluid mixes where the slump cone may not give reliable results. This test determines the consistency of fresh concrete by measuring the spread of concrete on a flat table subject to jolting. The flow test is applicable to a range of consistency of concrete that corresponds to flow value between 340 mm and 620 mm.

3. Compaction Factor Test

This test evaluates the ratio of the weight of partially compacted concrete to fully compacted concrete. A higher compaction factor indicates better workability. This test is generally used for determining the workability of concrete where the nominal maximum size of aggregate does not exceed 40 mm. This test is designed primarily for use in the laboratory, but if circumstances permit, it may also be used in the field. It is more precise and sensitive than the slump test and is particularly useful for concrete mixes of very low workability.

4. Vee-Bee Consistometer Test

Here, the time taken for concrete to transform from a conical shape to a cylindrical one under vibration is measured. A shorter time means higher workability.

If the Vee bee time is less than 5 seconds or more than 30 seconds, the use of the test method to determine the consistency may be unsuitable and other methods should be conisdered for this purpose( The Modified Vee bee consistometer test for testing of very stiff dry concretes such as riollar compacted concrete.

Together, these tests guide engineers in selecting and adjusting mixes to suit structural and site requirements.

Self-Consolidating Concrete: A Modern Solution

Self-consolidating concrete (SCC), also called self-compacting concrete, is a major advancement of modern construction in terms of ideal workability. It flows and compacts under its own weight, eliminating the need for vibration. SCC is highly fluid, making it perfect for intricate moulds, congested reinforcement, and hard-to-access areas.

Here are a few advantages of SCC:

• Faster placement with less labour.

• Uniform filling of formwork, reducing voids.

• Superior surface finish.

• Lower noise levels at sites since vibration is unnecessary.

SCC is increasingly adopted in high-rise buildings, precast industries, and projects demanding speed without compromising quality. It demonstrates how modern techniques refine concrete mixing and improve the efficiency of modern construction.

The workability of concrete is a very important factor when it comes to the success of any construction project as because it determines how easily concrete can be placed, compacted, and finished without affecting strength or durability. Thus, by controlling water-cement ratio, aggregate properties, mix proportion, and using admixtures wisely, engineers can design mixes suited for specific applications and rest assured of satisfying results.

FAQs (Frequently Asked Questions)

What are the factors of workability of concrete?

The workability of concrete is affected by the water-cement ratio, aggregate size, shape, and texture, use of admixtures, mix proportion, and mixing method. Weather conditions and section thickness also play a role. Balancing these factors ensures the mix is both easy to handle and structurally strong.

Why is concrete workability important?

Concrete workability is important because it determines how smoothly concrete can be placed and compacted. Good workability prevents voids, reduces the risk of segregation, and ensures durable, uniform structures suited to different construction needs.
