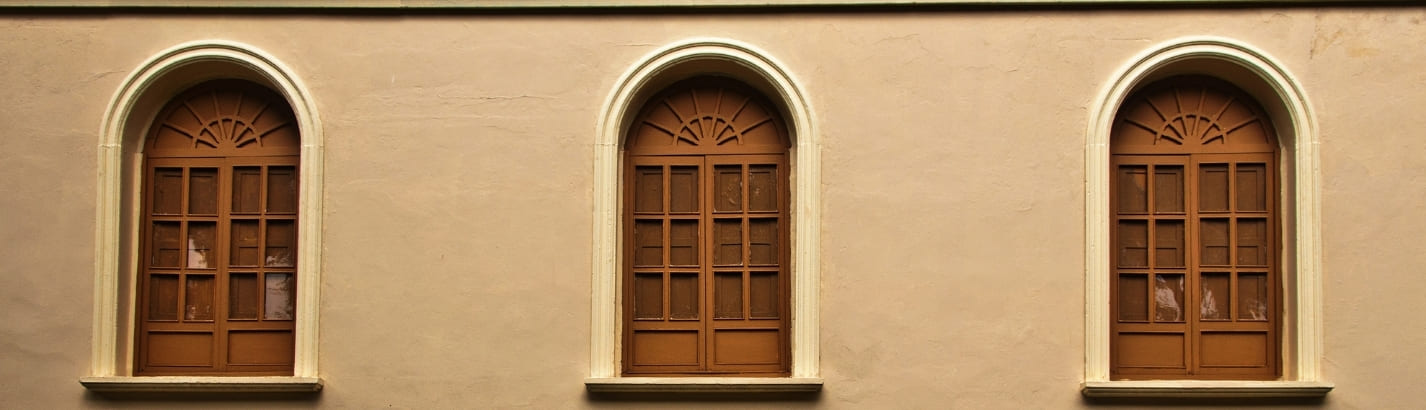

Understanding the Types of Arches in Construction and Their Role in Building Architecture

Arches have been part of building architecture for thousands of years and they are considered an essential element in construction for their structural integrity and visual appeal. In modern construction, where durability, load distribution, and design all matter equally, arches remain a solution that is relevant in all these aspects. Whether forming entryways, windows, bridges, or load-bearing supports, these curved elements serve aesthetic purposes and are considered crucial engineering components.

Arches in Construction - A Detailed Explanation

An arch is a curved vertical structure designed to span an opening and carry loads. The load applied from above is distributed across the curve and transferred to the supports at each end. This makes arches highly efficient in handling compressive forces and suitable for heavy-load environments.

They are used in a wide range of construction projects like bridges, doorways, aqueducts, and window frames due to their strength and the ability to maintain stability across wide spans. From ancient building materials like stone and brick to modern reinforced concrete, arches have adapted with the times while keeping their essential purpose intact.

The Historical Significance of Arches

The origins of arches can be traced back to early civilizations such as Mesopotamia and Rome. Builders in those historical times developed arches to solve a fundamental engineering problem, which happens to be spanning wider gaps without compromising stability. Initially constructed from stone or brick, these arches were held together by lime or clay, giving rise to structures like Roman aqueducts and Gothic cathedrals that still stand today.

As architectural styles and building materials evolved, so did the types of arches. With the introduction of reinforced concrete, newer forms of arches emerged, combining traditional load-bearing capabilities with modern-day adaptability. This evolution allowed arches to serve both structural and design functions in residential, civic, and industrial buildings.

What are the main types of arches used in construction projects?

The types of arches used in construction are commonly grouped into three categories:

1. By Shape

2. By Construction Material

3. By Number of Centre Points

Understanding these classifications helps architects and engineers choose the most suitable arch based on function, budget, and aesthetic requirements. So let’s dive deeper into the types that fall under each of the classifications:

1. Based on Shape

Shape determines both the function and appearance of an arch. Each shape distributes force differently and fits specific architectural requirements.

• Pointed Arch

  Also known as a Gothic arch, it is formed by two arcs meeting at a peak. Ideal for taller structures, it distributes weight more efficiently and allows large openings with slender supports.

• Horseshoe Arch

  Extends beyond a semicircle and is often seen in Islamic architecture. It has cultural significance and is commonly used for windows and entryways.

• Flat Arch

  Appears flat but has a slight rise in the extrados to accommodate settlement. Suitable for openings where the overhead load is minimal.

• Segmental Arch

  Covers a segment of a circle, typically less than 180°. It directs thrust in an inclined manner and is known for its durability and wide application.

• Semicircular Arch

  The shape forms a perfect half-circle. The load transfers directly downward, making it stable and simple in design.

• Venetian Arch

  A pointed arch with a deeper crown, built using four centres. Common in decorative applications.

• Semi-Elliptical Arch

  Formed using three or more centres, this shape combines grace with structural balance. Often used in bridges due to its smooth curve and consistent headroom.

• Stilted Arch

  Begins with vertical segments at the springing point, raising the base of the curve. It helps in adjusting the arch height without changing its curvature.

• Relieving Arch

  Constructed above flat arches or lintels to bear additional load. Often used as a structural backup in older buildings.

2. Based on Building Materials

The choice of building materials depends on factors such as project scale, budget, design intent, and durability requirements.

Stone Arches

• Ashlar Arches

  Made from finely dressed stones bonded with cement mortar. Often used in flat arches due to their precision.

• Rubble Arches

  Constructed using rough, unshaped stones. Limited to small spans (less than one metre) and non-critical structures. Occasionally used for relieving arches.

Brick Arches

• Rugged Brick Archway

  Built with standard bricks without shaping. Joints are wedge-shaped but crude. Not used in exposed or decorative work.

• Fine-Axed Brick Arch

  Bricks are trimmed into wedge shapes for better fit and visual appeal. Suitable for visible locations.

• Gauged Brick Arches

  Requires skilled craftsmanship. Bricks are precisely cut using saws and joined with lime mortar. Used where fine detailing is needed.

• Manufactured Brick Arches

  Composed of specially made bricks shaped like voussoirs. Offers uniformity and good craftsmanship.

• Reinforced Concrete Arches

  Used in modern construction for their strength, flexibility, and ability to span large distances. Steel reinforcement inside the concrete ensures higher load resistance.

3. Based on Number of Centres

The number of centres refers to the number of reference points used to draw the arch curve. This affects the geometry and the way forces are distributed.

• One-Centred Arches

  Includes arches like semicircular, segmental, flat, and horseshoe. All drawn from a single focal point.

• Two-Centred Arches

  Shapes such as Gothic, pointed, and lancet fall under this category. The use of two centres gives a sharper, more vertical appearance.

• Three-Centred Arches

  Elliptical and equilateral arches use three points to form smoother curves and wider spans.

• Four-Centred Arches

  Includes shapes like the Venetian and Tudor arches. Allows more complex curves and decorative designs.

• Five-Centred Arches

  An advanced design seen in semi-elliptical arches, offering better visual flow and space management.

In modern building architecture, arches continue to serve as both functional and decorative elements. Whether you're building a bridge, restoring a heritage structure, or designing a new home, the right arch can make all the difference, not just in how a structure looks, but in how long it lasts.

FAQS

How do different types of arches affect structural strength in buildings?

Arches distribute load through compression. Types like pointed arches handle taller structures, while segmental and semicircular arches offer stability for wider spans. Shape affects how forces are transferred to supports, improving structural integrity.

Which building materials are commonly used to construct arches?

Arches are built using stone, brick, or reinforced concrete. Stone suits traditional designs; bricks offer a variety from basic to decorative types; reinforced concrete is ideal for modern, large-span structures.

Where are different types of arches typically used in residential and commercial construction?

Segmental and semicircular arches are common in windows, doorways, and bridges. Flat arches suit light-load interiors. Pointed and Venetian arches are used for decorative features. Reinforced concrete arches are preferred in large-scale commercial projects.
