Concrete Segregation: Causes, Signs, and Solutions

Concrete is the backbone of construction because it carries loads, resists weather, and ties the entire structure together. That performance depends on how well its ingredients are measured, mixed, moved, and placed. When the fresh concrete mix loses uniformity during any of those steps, the material stops behaving as one cohesive mass. This loss of uniformity is called concrete segregation.

What is Concrete segregation?

Concrete segregation is the separation of the constituents of fresh concrete. Heavier particles, mainly coarse aggregates, tend to settle under gravity. Lighter constituents, such as cement paste and water, tend to migrate upward. If the concrete mix is poorly proportioned, inconsistently mixed, or handled in ways that disturb its uniformity, different parts of the same batch can end up with different proportions of aggregate, cement, and water.

The result is a non-uniform material. Some zones become aggregate-rich and paste-poor. Other zones carry excess paste and water. That non-uniformity weakens the concrete, makes finishing difficult, and often leaves a path for water to enter the structure.

Types of segregation you may encounter

Segregation does not always present the same way. On-site, it typically appears in one or more of the following forms.

1) Separation and settling of coarse aggregates

Coarse aggregates can drift and settle toward the bottom when the concrete mix lacks cohesion or is disturbed by poor handling. This happens with incorrect aggregate grading, inadequate fines, or insufficient mixing. The surface then looks paste-rich, while the bottom becomes aggregate-heavy. The section ends up uneven in strength and more permeable.

2) Bleeding at the surface

Bleeding is the upward movement of free water to the surface of fresh concrete. It becomes a segregation problem when the paste is diluted at the top while aggregates settle below. Persistent bleed water delays finishing, increases surface porosity, and can reduce near-surface strength. Bleeding is often aggravated by excess water content and inadequate control of workability.

3) Laitance formation

Laitance is a weak, porous surface layer formed when fine particles and water accumulate at the top. Over-vibration, insufficient compaction in layers, or an overly fluid concrete mix can drive fines upward and leave a dusty or chalky film. Laitance is prone to cracking and scaling. It also admits water and contaminants, increasing maintenance needs over the life of the structure.

4) Grout separation

Grout is the cement paste that should fill the spaces around sand and gravel. If mixing is inconsistent, the water content is out of range, or vibration is excessive or poorly executed, paste can separate from the aggregate skeleton. Gaps then appear between paste and stone, weakening the interlock and creating pathways for water.

What are the causes of segregation in concrete?

Segregation is usually multi-factor. The following causes repeatedly show up in field investigations:

1. Uneven proportioning of ingredients

   Batches made without proper measurement or with an excessive water–cement ratio lose cohesion. Too much water thins the paste, allowing aggregates to settle. Too little fines can also reduce cohesion, especially with gap-graded aggregates.

2. Insufficient mixing time or poor mixing method

   Short mixing cycles or manual mixing that does not fold the material thoroughly leave pockets rich or lean in the paste. Those pockets then separate under transport or placement.

3. Inconsistent handling

   Scooping or shoveling fresh concrete across long distances, dropping it from one bucket to another, or repeatedly pushing it with tools can break the uniform distribution of components. Manual methods are especially at risk when crew sizes are small or time is tight.

4. Improper placement

   Pouring from excessive height allows heavy particles to fall and segregate before hitting the form. Letting concrete flow across long distances in the formwork has the same effect. Both practices encourage aggregates to separate and settle.

5. Incorrect vibration

   Vibration helps consolidate concrete and remove entrapped air. Over-vibration, however, can drive coarse aggregate downward and force fines and water to the surface. Under-vibration causes honeycombing. Both conditions are linked to segregation.

The Impact of Concrete Segregation

Segregation undermines the engineering objectives of concrete. The impacts fall into three broad groups.

1. Higher permeability, leakage, corrosion, and carbonation

   Where paste thins and voids form, water moves more easily. That accelerates reinforcement corrosion and speeds carbonation of the cement matrix. The structure faces more frequent repairs and higher life-cycle costs.

2. Cracking and surface defects

   Non-uniform material shrinks and responds to temperature differently across a section. That increases the likelihood of plastic shrinkage cracks, crazing, and deeper structural cracks. Honeycombing and voids also appear in segregated zones, especially near congested reinforcement.

3. Reduced strength and durability

   Aggregate-rich pockets lack adequate paste to bond particles. Paste-rich pockets lack sufficient aggregate interlock. Both reduce compressive and tensile capacity and diminish resistance to cycles of wetting, drying, and freeze–thaw in relevant climates.

For home building, these effects translate into lower load-bearing capacity, more visible defects, and shortened service life. Early prevention is therefore the most economical path.

Signs that indicate Concrete Segregation

Concrete Segregation can be identified easily if one knows what to look for. Some major observations include:

• Visible separation of paste and aggregates in the fresh concrete mix.

• Aggregates accumulating either at the bottom (settling) or on a paste-rich surface that looks watery or milky after placing.

• Discoloration in streaks or patches during finishing.

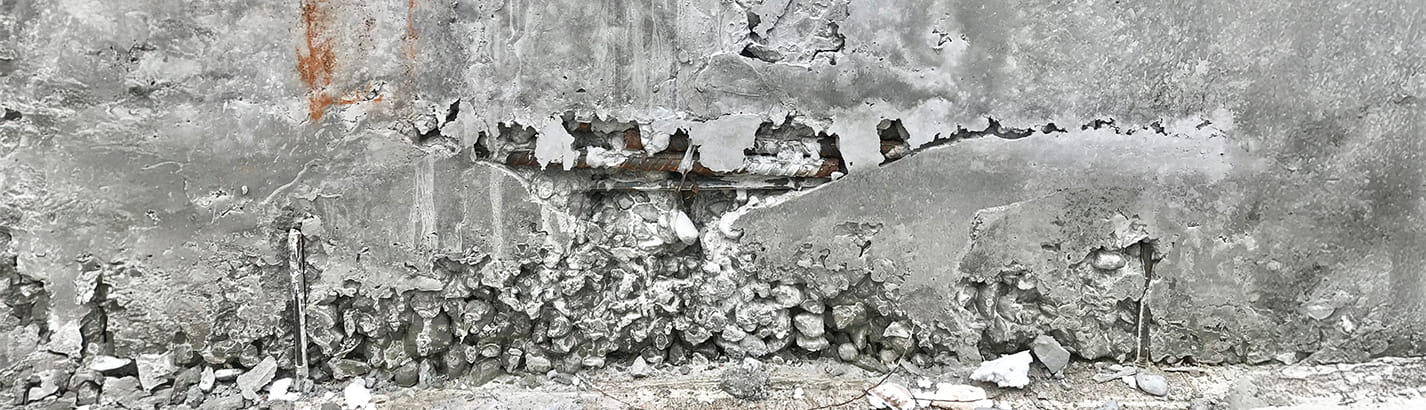

• Honeycomb-like textures or voids revealed after formwork removal.

• A weak, powdery surface layer that suggests laitance.

Any of these should trigger an immediate check of proportioning, workability, placement methods, and vibration technique on the next lift or batch.

Practical measures to prevent Concrete Segregation

Preventing Concrete segregation is about controlling mix quality, handling, and placement with consistent discipline. The following measures are practical on typical residential sites and align with sound construction practice.

1. Improve and standardise mixing

• Measure all ingredients by weight or calibrated volume for every batch.

• Use mixing equipment that can fully fold the material within the recommended cycle time.

• Keep the drum or pan clean and free of hardened build-up that disrupts mixing.

• Avoid last-minute additions of water or cement at the site unless directed by a competent supervisor.

2. Optimise aggregate grading

• Select aggregates with a well-graded distribution so particles lock together.

• Avoid gap-graded combinations that create unstable skeletons.

• Ensure cleanliness; dusty or muddy aggregates alter water demand and reduce cohesion.

3. Control workability without over-watering

• Target a workable concrete mix appropriate for the element and reinforcement density.

• Adjust with approved admixtures when required, rather than adding uncontrolled water.

• Monitor temperature; hot conditions increase water loss and can worsen bleeding.

4. Adopt segregation-resistant mix designs where needed

• Use designs with adequate fines and an appropriate water–cement ratio to maintain cohesion.

• Increase paste only as necessary to achieve placement in congested zones.

• Verify that cement content, admixture dosage, and aggregate proportions are compatible with on-site methods.

5. Place concrete correctly

• Reduce free-fall height using chutes, elephant trunks, or pipes so the concrete mix does not separate in the air.

• Place in layers of appropriate thickness, covering reinforcement uniformly.

• Do not let concrete flow long distances over reinforcement; move the discharge point closer instead.

6. Compact with care

• Use vibrators of the correct size and frequency for the element.

• Insert the vibrator vertically, at regular spacing, and withdraw slowly to avoid air voids.

• Do not over-vibrate, especially near the surface, as that can force fines upward and create laitance.

7. Handle and transport thoughtfully

• Avoid re-handling. Each transfer step increases the chance of separation.

• Keep travel distances short and steady from the mixer to the point of placement.

• Coordinate batch arrivals so crews can place and compact continuously without rushing.

8. Inspect continuously and adjust early.

• Watch for the field signs listed earlier during each pour.

• If segregation appears, pause, identify the source, and correct the next batch or layer before proceeding.

• Keep simple checklists for crews to reinforce consistent practice on busy days.

Concrete segregation is a preventable problem. It arises when the concrete mix loses uniformity during proportioning, mixing, transport, placement, or compaction. Preventing segregation is about discipline and basics done right. Mix thoroughly. Use well-graded aggregates. Control workability without uncontrolled water. Place in layers with minimal drop height. Compact correctly. Handle and transport with a steady plan. Inspect as you go and correct early. Following standard procedures, using good materials and equipment, and relying on skilled crews will deliver concrete that performs as designed. That protects the structure, the budget, and the long-term comfort of the people who will live in the home.
