A Complete Guide to Different Types of Slabs in Construction

Building a house? You'll encounter slabs everywhere. They're the concrete floors under your feet, the roof over your head, and the ceilings you look up at. These flat, horizontal slabs might look simple, but they're doing heavy lifting to keep your building stable and safe.

Understanding different slab types helps you make better decisions during construction. Whether you're dealing with a basic one-way slab in your living room or a specialized cantilever slab for your balcony, each type serves a specific purpose.

Let's break down what slabs actually do and explore the varieties you'll encounter in modern construction.

What is called a Slab?

A slab is a flat, horizontal structural element made of reinforced concrete. Slabs form the floors, roofs, and ceilings of a building. Slabs are fundamental structural element in building construction, forming floors, roofs and ceilings. They are typically made of reinforced concrete and play a crucial load in distributing loads and providing stability to overall structure.

The proper design of a slab in construction is important as it affects the strength and stability of the entire structure. The interior layout also depends on the slab design.

The Role of a Slab in a Building

A slab's main function is to provide a level and stable surface. These surfaces become floors and roofs.

The slab must be strong enough to support all the loads placed upon it. These loads include the weight of furniture, equipment, and people. The slab also supports its own considerable weight.

Most modern buildings use a beam and slab system. In this arrangement, the slab carries the load to a framework of beams. These beams then transfer that load to the columns. The columns in turn carry the load down to the building's foundation.

The Different Types of Slabs in Construction

Many different types of slabs are used in construction. Each type is designed to suit a specific purpose. They handle different spans and load requirements.

The choice of slab is an important decision. It impacts the project's cost. The construction timeline and overall architectural design are also affected.

Conventional Slabs

These are the most common types of slabs. You will find them in most residential and commercial buildings.

• One-way slab

A one-way slab has support from beams on two opposite sides. This support system causes the load to be transferred primarily in one direction.

The load moves towards those two beams.

Engineers typically use this type of slab when a room's length is more than twice its width.

• Two-way slab

A two-way slab is supported by beams on all four of its sides. This means the load gets distributed in two directions.

The load moves towards all four of the supporting beams.

This type is generally used when a room's dimensions are closer to a square shape.

Specialized Floor and Roof Slabs

Engineers use these more advanced slab types for specific reasons. They can achieve longer spans. They can also reduce the overall weight of the structure. Sometimes they are used to create specific architectural features.

• Flat Slab

A flat slab is a type of two-way slab. It rests directly on columns. It does not need any beams for support. The load from the slab is transferred straight to the columns.

This design results in a completely flat ceiling. This provides more usable vertical space. It also offers greater flexibility for interior room layouts and commonly used in commercial buildings & parking garages.

• Ribbed Slab (or Joist Slab)

A ribbed slab is also known as a joist slab. It consists of a series of small concrete joists, or ribs. A thin slab sits on top.

This design uses less concrete than a solid slab. This makes the structure much lighter.

It is a good choice for covering medium to long spans where loads are not excessively heavy.

• Waffle Slab

The waffle slab is a unique type of ribbed slab. It features ribs running in two directions.

This creates a distinctive grid-like pattern on the ceiling. The pattern resembles a waffle.

This slab is extremely strong. It is used for very large spans. You might see it in auditoriums, libraries, or airports where a visually interesting ceiling is desired.

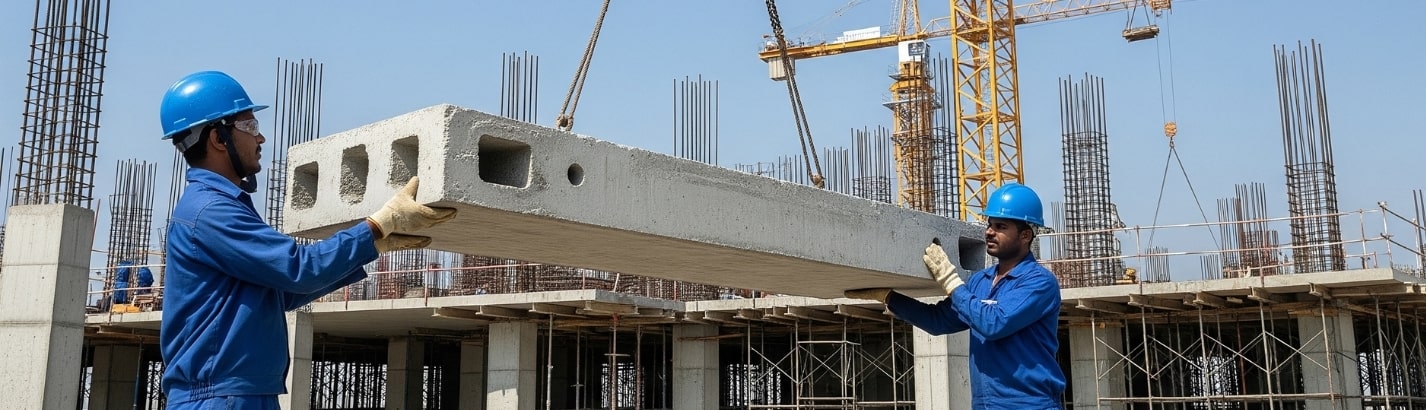

• Hollow Core Slab

A hollow core slab is a precast slab. It is manufactured in a factory. It is then transported to the site.

It has long, hollow tunnels running through its length.

These hollow cores make the slab significantly lighter. They also reduce the amount of material needed.

Because they are pre-made, these slabs can be installed very quickly.

• Composite Slab

A composite slab is built using two different materials working together. It has a profiled steel decking sheet at the bottom.

A layer of concrete is then poured on top. The steel sheet serves as a permanent support during construction.

It also acts as the primary reinforcement for the finished slab. This combination of steel and concrete creates a very strong and efficient system.

Precast Slabs: Manufactured in a factory setting and then transported to the construction site for installation. Precast slabs offer advantages like reduced construction time, improved quality control and less dependency on weather conditions.

Slabs for Specific Functions

These slabs are designed for very particular jobs within a building.

• Slab on Grade (Foundation Slab)

A slab on grade is essentially a type of foundation. The concrete is poured directly onto the prepared ground.

This is a common and cost-effective choice for garages and warehouses. Certain styles of homes also use this foundation type.

• Sunken Slab

A sunken slab is constructed at a lower level than the surrounding floor slabs. It is typically about 200mm to 300mm lower.

You will find these slabs in bathrooms, wash areas, and utility rooms. This lowered level provides a convenient space to conceal plumbing pipes. This allows the final finished floor to be level with the rest of the house.

• Projected Slab (Cantilever Slab)

A projected slab is also called a cantilever slab. It is fixed at only one end. The other end extends outwards without any support beneath it.

Balconies are the most common example of a projected slab. Porches and unsupported roof overhangs also use this design.

• Low Roof / Loft Slab

A low roof slab is a small, intermediate slab. It is thinner than the main roof slab. It is usually built at the same height as the top of a door.

You can find these in kitchens or bedrooms. They create useful extra storage space known as a loft.

Frequently Asked Questions (FAQs)

What is slab in RCC?

In RCC construction, a slab is a key structural member. The concrete is strengthened with steel bars to give it tensile strength. This reinforcement allows the slab to span across supports. It can then carry heavy loads without breaking.

What is a one-way slab?

A one-way slab has supports on two opposite sides. This support system causes the load to travel mainly in one direction towards those two supports.

What is a two-way slab?

A two-way slab has supports on all four of its sides. This allows the load to be distributed in two directions. The load travels towards all four of the supporting beams.

What are the different types of slabs?

Common types of slabs include conventional slabs like one-way and two-way slabs, specialized slabs like flat slabs, ribbed slabs, and waffle slabs, and slabs for specific functions like sunken slabs and projected (cantilever) slabs.

What is beam and slab?

A beam and slab system is a common RCC construction method in which a reinforced concrete slab is supported by beams, which then transfer loads to columns and ultimately the foundation. The slab carries the floor's load and transfers it to the beams, which then carry the load to the columns.

How to select a particular type of slab?

The choice of slab type depends on various factors including the span length, load capacity requirements, architectural design, potential utility locations and cost considerations.
