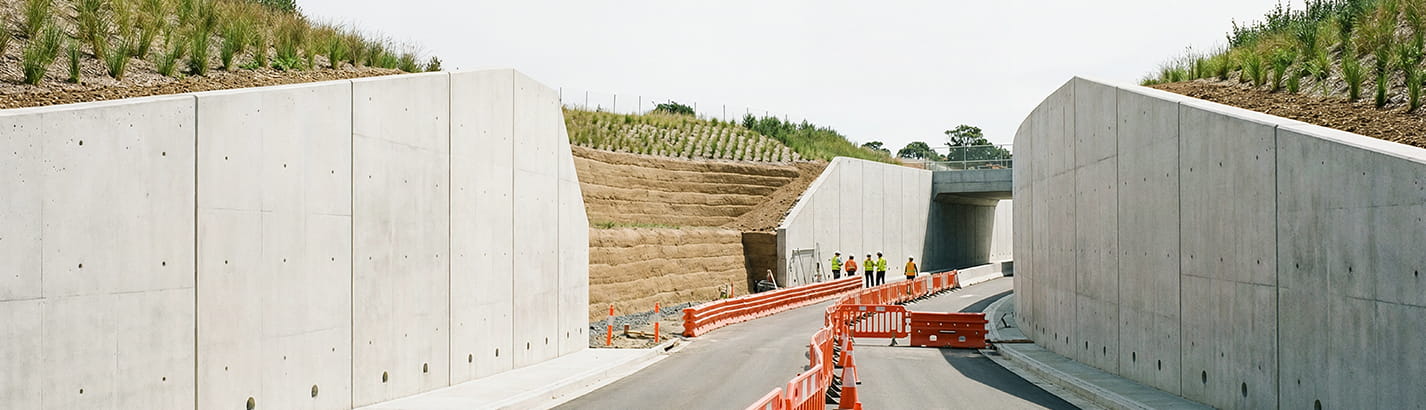

Types of Retaining Walls and When to Use Them
- Sep 16
- 5 min read
Retaining Walls are built to hold soil in place and stop it from sliding. They’re useful for flattening sloped land, preventing soil erosion, and keeping the area around buildings safe. These walls are common in both homes and bigger construction projects. They’re especially helpful in hilly areas where loose soil could cause problems if not supported.
Types of Retaining Walls Based on Shape and Function
Type of Wall | Materials Used | Advantages | Disadvantages | Applications and Suitable Conditions |
|---|---|---|---|---|
Gravity Retaining Walls | Concrete, stone, brick, masonry blocks | Simple construction with minimal reinforcement Aesthetic flexibility Handles various heights and soil conditions | Needs substantial space for thickness High material and construction costs Not ideal for very tall walls | Suitable for low to moderate height applications in soil retention and landscaping. |
Cantilever Retaining Walls | Reinforced concrete, precast concrete, prestressed concrete | Requires less material than gravity walls Suitable for greater heights Space-efficient with a thinner wall profile | Needs skilled labour and careful design Higher initial cost Complex construction with formwork and reinforcement | Ideal for high-load areas with firm soil. Commonly used in highways, basements, and civil engineering projects. |
Counterfort Retaining Walls | Reinforced concrete, stone, brick | Reduces bending moments Suitable for taller walls Efficient material use due to support from counterforts | Complex design Higher cost due to extra materials Requires precise engineering and skilled labour | Best for high-load applications in large infrastructure projects like highways, bridges, and high retaining structures. |
Anchored Retaining Walls | Steel and concrete | Suitable for very high walls Provides support in unstable soils Can be combined with other wall types | Complex to design and build High cost due to specialised labour Requires regular maintenance | Suitable for limited-space areas with high loads or loose soil over rock. Used in gardens, building sites, and slope stabilisation. |
Types of Retaining Walls Based on Material
Type of Wall | Materials Used | Advantages | Disadvantages | Applications and Suitable Conditions |
|---|---|---|---|---|
Sheet Pile Retaining Walls | Steel, Vinyl, Aluminium, Fibreglass, Wood | Ideal for narrow spaces and soft soils Quick to install with minimal ground disturbance Works for both short-term and permanent needs | Less load capacity compared to heavier wall types Can get damaged in rough conditions Needs a precise design to ensure proper performance | Riverbanks, waterfronts, cofferdams, and temporary excavation sites |
Geosynthetic Reinforced Retaining Walls | Geogrids, Geotextiles | Useful for tall walls and tight spaces Reduces reliance on heavy materials like concrete Flexible and adaptable to different designs | Needs expert design and skilled installation Higher cost of materials Sensitive to improper handling or harsh environments | Steep slopes, roads, runways, and earthquake zones |
Mechanically Stabilized Earth (MSE) Walls | Precast Concrete Panels, Galvanised Steel Strips | Good for high walls and heavy loads Allows flexibility on sites with difficult soil conditions Uses less concrete overall | Steel parts may corrode over time Requires quality control during fill and compaction Needs proper soil selection for backfill | Highways, bridge abutments, seawalls, steep or unstable areas |
Concrete Retaining Walls | Concrete with steel reinforcement | Long-lasting and strong Can be shaped to suit design needs Handles significant pressure | High cost of construction May develop cracks over time Requires trained professionals for proper build | Industrial zones, commercial landscaping, and highways |
Masonry Retaining Walls | Stone, Brick, Concrete Blocks | Visually appealing Fits well in landscaped areas Easy to repair, individual units can be replaced | Not suitable for tall structures Can shift or settle if not built correctly Needs skilled masonry work for stability | Garden beds, terrace walls, residential compounds |
Gabion Retaining Walls | Wire mesh cages filled with rocks, gravel, or rubble | Low-cost and easy to assemble Allows water to pass through, reducing pressure Uses local or recycled materials | Mesh can rust in wet environments Appearance may vary depending on the available fill Not suited for very tall or heavily loaded walls | Erosion control, rural areas, river edges, and highways |
Hybrid Retaining Walls | Combination of systems (e.g., concrete panels with geosynthetic layers) | Combines the benefits of different wall types Faster construction and material savings Can be designed to meet functional and aesthetic needs | More complex design and coordination May cost more due to specialised labour and planning Maintenance can be challenging, especially in rough climates | Sloped terrain, complex sites, high-load zones, custom designs |
How to Choose the Right Retaining Wall Design?
Here are some points to keep in mind before choosing a retaining wall design:
Check how steep the area is. Steeper slopes need stronger walls to stay stable and safe.
Different materials offer different looks and strengths. Pick one that matches your home’s design and suits the weather and soil around it.
Good drainage must be part of the wall design. If water builds up behind the wall, it can weaken the structure and cause failure over time.
Make sure you understand what the wall needs to carry before choosing the design.
Retaining walls help improve how your space looks. So choose a style that blends well with the surroundings while still meeting the load and soil needs.
Advantages and Disadvantages of Retaining Walls
Here's a clear look at both the advantages and disadvantages of Retaining Walls:
Advantages
They prevent soil erosion.
Reduce the chances of water damage by directing water away from the foundation.
They level out sloping terrain to make room for outdoor features.
They add to the aesthetic appeal of your house.
Disadvantages
The cost varies depending on the design and material used.
Over time, some walls might require maintenance or additional support.
Large wall designs may not be suitable in smaller spaces.
Retaining Walls play a very important role in managing soil and keeping slopes stable. Each type comes with its own set of materials, strengths, and challenges, therefore, choosing the right option depends on the site conditions and project needs.
FAQs (Frequently Asked Questions)
How can building retaining walls help control soil erosion?
Retaining walls prevent soil erosion by holding soil in place, especially on slopes. This protects landscapes, foundations, and nearby structures from erosion caused by rain, wind, or gravity.
What is the design procedure for a retaining wall?
The design process includes site assessment, wall type selection, load calculation, drainage planning, material choice, foundation design, and stability checks.
What are the main factors for designing a retaining wall?
The main factors include soil type, slope angle, wall height, expected load, drainage needs, available space, material durability, and environmental conditions. These determine the wall's structure, strength, and long-term stability.
